A ball bearing is a type of bearing that uses small, spherical balls to reduce friction between moving parts. It works by supporting both radial and axial loads while minimizing rotational friction. While bearings have been around since ancient times, the first modern patent for a ball bearing was granted in 1794 to Philip Vaughan, a Welsh inventor and ironmaster. Modern ball bearings, however, owe much to the industrial revolution, where advancements in metallurgy and precision manufacturing enabled their widespread adoption. Today, they are indispensable in numerous industries.

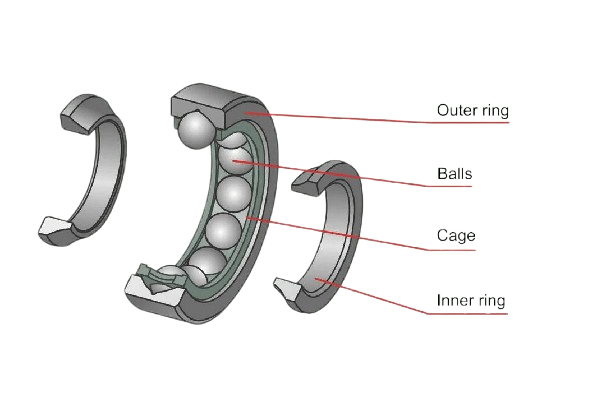

Components of a Ball Bearing

Inner and Outer Rings :

These house the rolling elements and provide structural support.

Rolling Elements :

Typically steel or ceramic balls that reduce friction.

Cage :

Maintains even spacing of the rolling elements.

Seals :

Protective elements that prevent contamination and retain lubrication, enhancing the bearing’s performance and longevity.

Types of Ball Bearings :

Deep Groove Ball Bearings :

Known for their versatility, they are suitable for high-speed applications and can support radial and axial loads.

Angular Contact Ball Bearings :

Designed for applications requiring precision, these bearings can handle significant axial loads in one direction.

Self-Aligning Ball Bearings :

Ideal for scenarios where shaft misalignment may occur, these bearings ensure smooth operation without compromising performance.

Thrust Ball Bearings :

Designed to handle axial loads in a single direction, these bearings are ideal for applications that require precise control of axial forces.

Miniature Ball Bearings :

Compact and lightweight, these bearings are perfect for applications with limited space.

How to choose the ideal Ball Bearing for your application ?

When selecting a ball bearing for a specific application, it’s important to first consult official references or machine manuals to ensure the bearing meets the recommended specifications. If these resources aren’t available, choose based on key factors:

Load Considerations :

Understand the load direction and magnitude. For radial loads, use standard bearings; for axial loads, thrust bearings are best. Deep groove or angular contact bearings work for both radial and axial loads. Consider single or double-row options depending on the axial load direction.

Bearing Size :

The bearing size is defined by the outer diameter, inner diameter (bore size), and width. Ensure the outer diameter fits the housing, and the bore size provides a tight shaft fit. For limited space, thin-section bearings may be necessary.

Shaft Alignment :

For perfect shaft alignment, standard bearings suffice. If misalignment is likely, use self-aligning bearings like double-row self-aligning or spherical thrust bearings.

Speed Requirements :

Determine the bearing’s speed rating based on machine dimensions or production rate calculations.

Material Selection :

Choose the bearing material based on the operating environment and load capacity. Ceramic bearings work well in extreme conditions, while stainless steel is ideal for heavy loads. Hybrid bearings combine the benefits of ceramic and steel.

Sealed vs. Open Bearings :

Sealed or shielded bearings are suitable for dirty environments or hard-to-access areas. Open bearings work for clean environments and allow re-lubrication for longer lifespan.

Quality and Cost :

Consider the bearing’s quality and the manufacturer’s reputation along with your budget. High-quality bearings can reduce the risk of costly breakdowns.

By assessing these factors—load, size, alignment, speed, material, sealing, and quality—you can select the right bearing for optimal performance and durability.

Ball Bearing Applications :

Ball Bearing Type	Description	Applications
Deep Groove Ball Bearing	Versatile and widely used, these bearings can support both radial and axial loads in high-speed applications.	Automotive, electric motors, pumps, machinery, household appliances.
Angular Contact Ball Bearing	Designed to handle significant axial loads in one direction, they are ideal for precision applications and can accommodate both radial and axial loads.	Spindles, pumps, machine tools, gearboxes, and aircraft engines.
Self-Aligning Ball Bearing	These bearings are designed to accommodate misalignment and continue to operate smoothly.	Conveyors, mining equipment, construction machinery, and applications with shaft misalignment.
Thrust Ball Bearing	Ideal for handling axial loads in one or both directions, typically with a high load capacity.	Automotive clutches, gearboxes, cranes, and applications requiring axial load support.
Miniature Ball Bearing	Small-sized bearings used for precision, high-speed applications where space is limited.	Medical devices, dental tools, watches, robotics, and cameras.
Hybrid Ceramic Ball Bearing	Combines ceramic balls with steel races, offering high durability, speed, and resistance to heat and corrosion.	Aerospace, high-speed machinery, and environments requiring high-performance bearings.

Emerging Trends and Innovations :

The ball bearing industry is evolving rapidly, driven by technological advancements and changing market demands. Some notable trends include

Smart Bearings :

Equipped with IoT capabilities, smart bearings integrate sensors that monitor temperature, vibration, and load in real time. This data helps predict failures, optimize performance, and reduce downtime in industrial settings.

Advanced Materials :

Researchers are exploring new materials such as graphene composites and hybrid ceramics. These materials offer superior durability, reduced weight, and enhanced resistance to extreme temperatures, making them ideal for high-performance applications.

Sustainability Initiatives :

Manufacturers are focusing on eco-friendly production processes and recyclable components to reduce the environmental impact of ball bearings.

Ball bearings have evolved into a cornerstone of modern engineering, essential to the smooth operation of machinery across various industries. With continuous advancements in design, materials, and technology, they remain indispensable, ensuring enhanced performance and reliability. As innovations continue to shape their future, ball bearings will remain vital in driving machinery efficiency worldwide.
